PUK 809001 PLAZA 25
Product code 809001

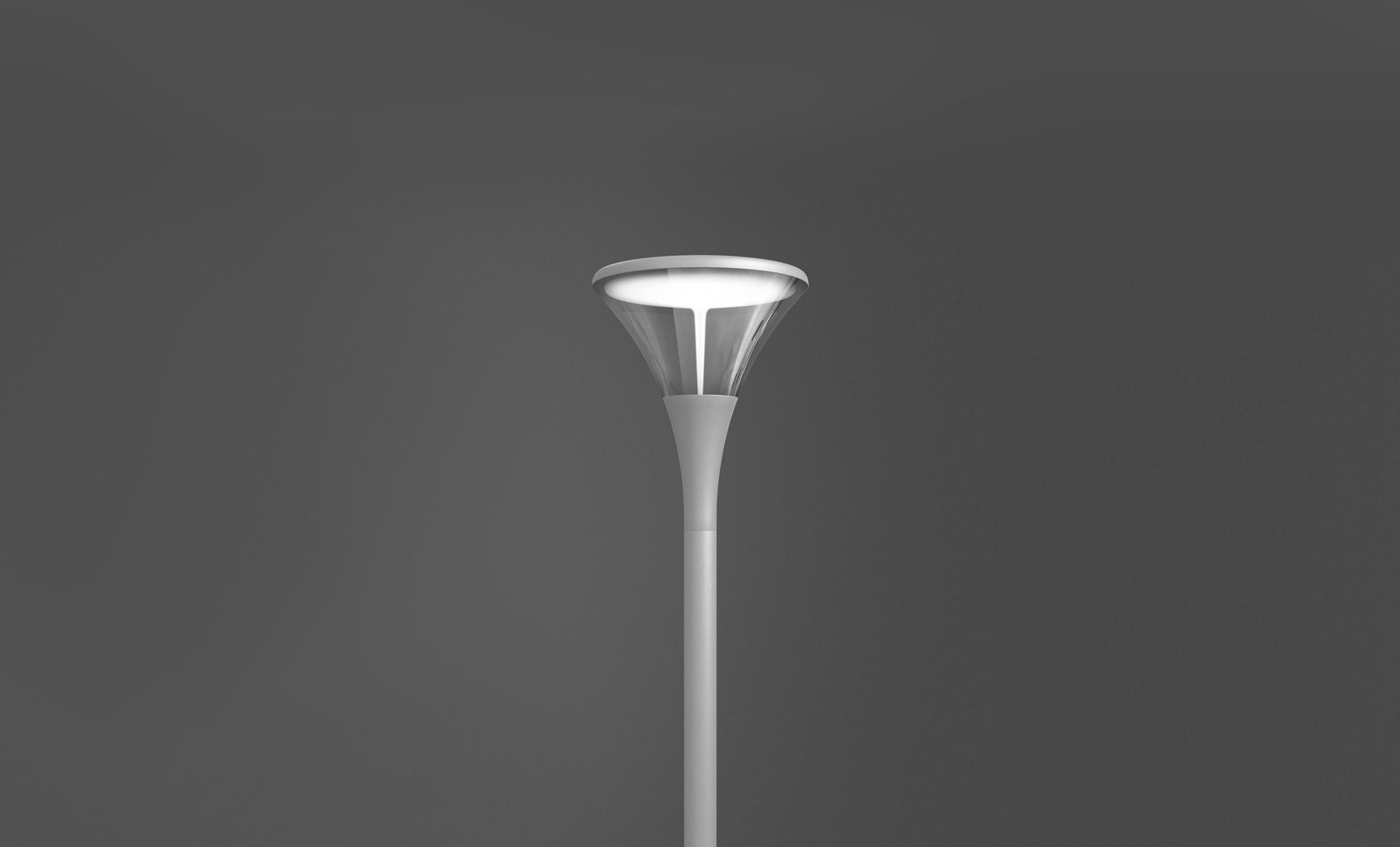

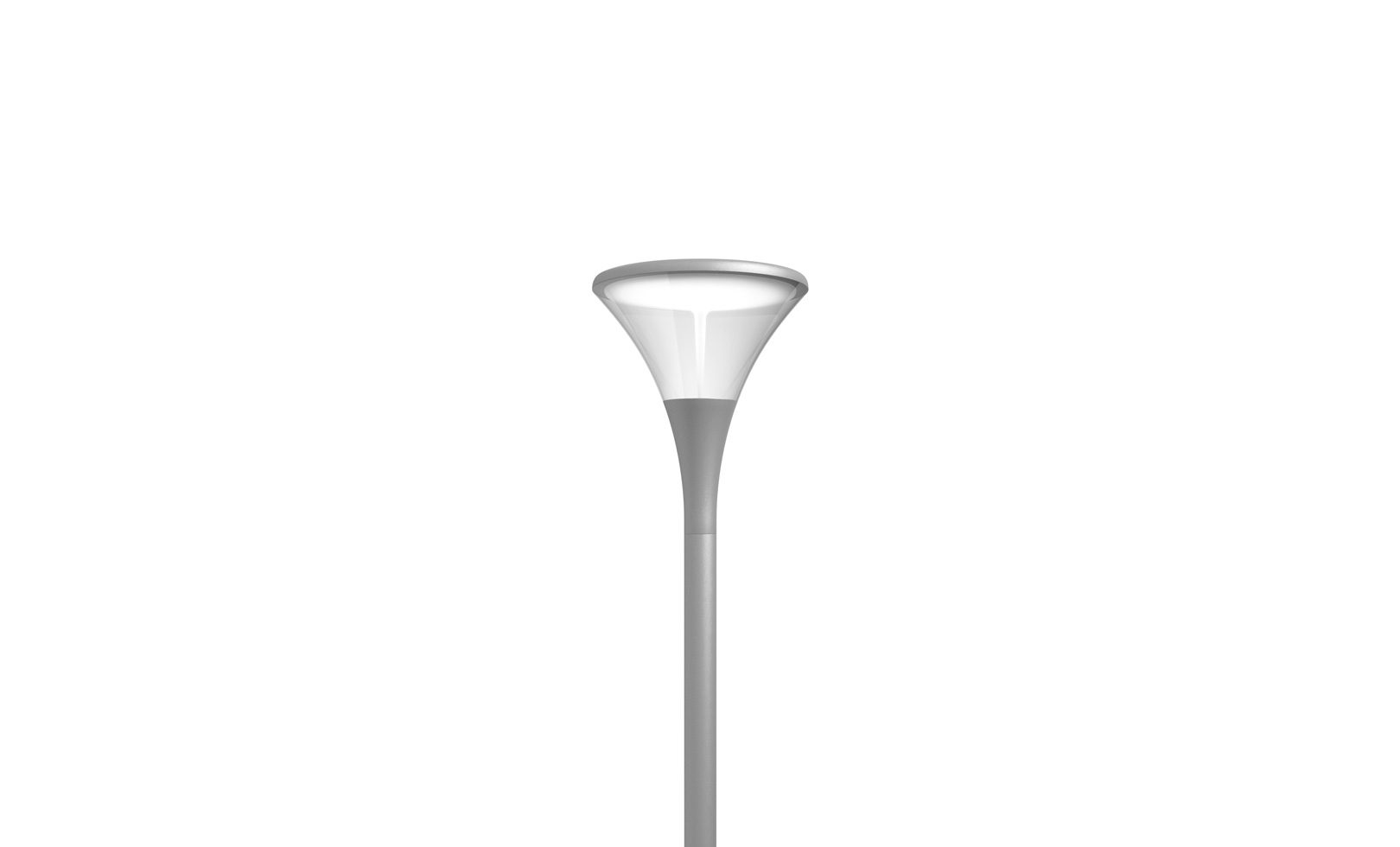

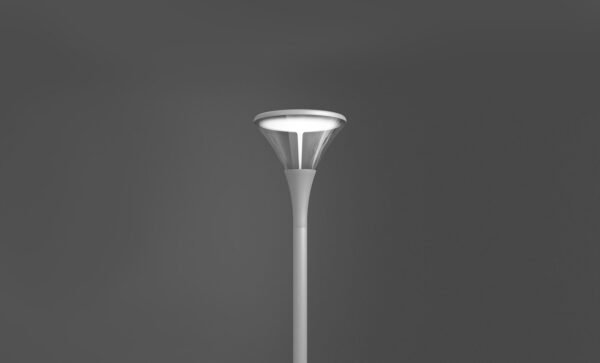

Round pole-top mounted luminaire for outdoor installation on a pole diam. 60 mm (or 76 mm using pole adapter). Phospho-chromatised and polyester powder coated die-cast copper-free aluminium body, polycarbonate di user, moulded silicone gasket and stainless steel screws Built-in LED driver 220-240V 50-60Hz, with 50 x Lumileds / Luxeon DS207 LED. IP66 rating.
25 WATT
IK10
Class II
DALI
· Material: High corrosion resistance die-cast copper-free aluminum body
· Coating: Polyester powder coating with phosphocromating pre-finish
· Light source: 50 x Lumileds Luxeon DS207 LED
· Screws: Stainless steel
· Diffuser: Polycarbonate
· Power supply: 220/240V 50/60Hz built-in
· Gasket: Silicone rubber
· Cable gland: M20 cable gland
Where to useFor roads, communities, car parks and walkways.
- Power
- 25W
- IP rating
- IP66
- Impact rating
- IK10
- Dimming
- DALI
Downloads
Technical datasheet809001 · PDF
Specifications
At a glance
| Product code | 809001 |
|---|---|
| Brand | PUK Italy |
| Category | PUK Italy Urban Street Lights |
| Power | 25W |
| IP rating | IP66 |
| Impact rating | IK10 |
| Dimming | DALI |
Need a different wattage, colour temperature or finish? Ask our team.
