PUK Italy

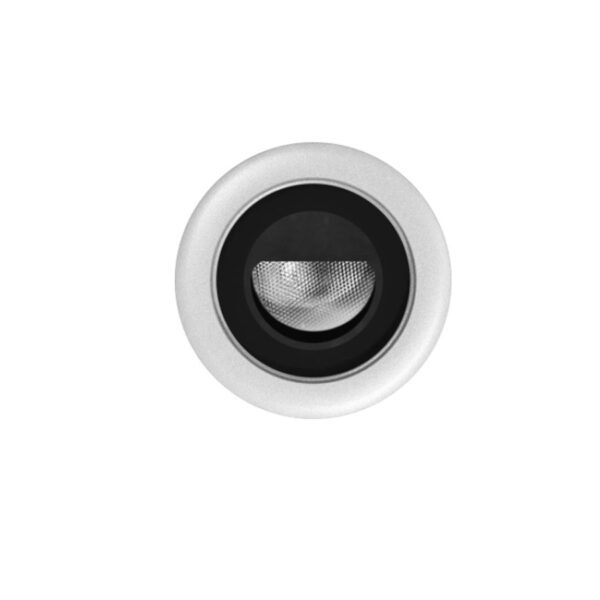

PUK 505003 NANOSTEP ROUND
Product code 505003
Round shape wall-recessed luminaire for outdoor installation. Body and frontal cover in hard anodized aluminum with phospho-chromatised and polyester powder coating, tempered safety glass, moulded silicone gasket. Asymmetrical oval wide light distribution. Remote constant current max 700mA driver needed, with 1 CREE XHP35 LED. IP68 rating
MAX 10 WATT
IK08
· Material: Hard anodized aluminium body and trim
· Coating: Polyester powder coating with phosphocromating pre-finish
· Power supply: Constant current 700 mA
· Glass: Tempered
· Gasket: Silicone rubber
· Power cable: 0.3 mt. neoprene power cable included

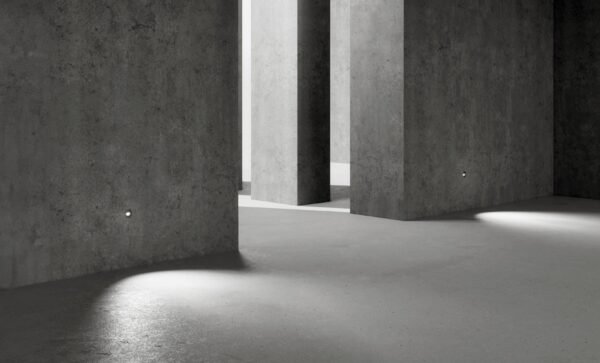

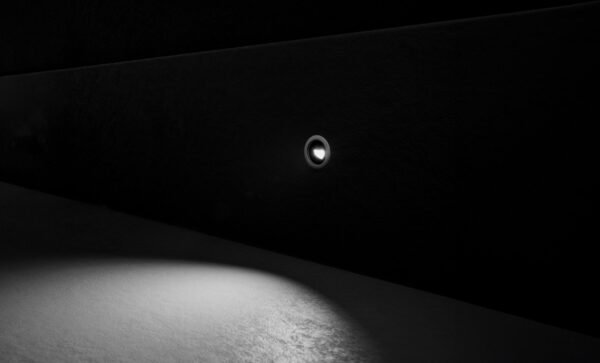

Where to useFor stairs, ramps, terraces and building entrances.
- Power
- 10W
- IP rating
- IP68
- Impact rating
- IK08
Downloads
Technical datasheet505003 · PDF
Specifications
At a glance
| Product code | 505003 |
|---|---|
| Brand | PUK Italy |
| Category | PUK Italy Wall Recessed |
| Power | 10W |
| IP rating | IP68 |
| Impact rating | IK08 |
