PUK 503001 LINE STEP 01
Product code 503001

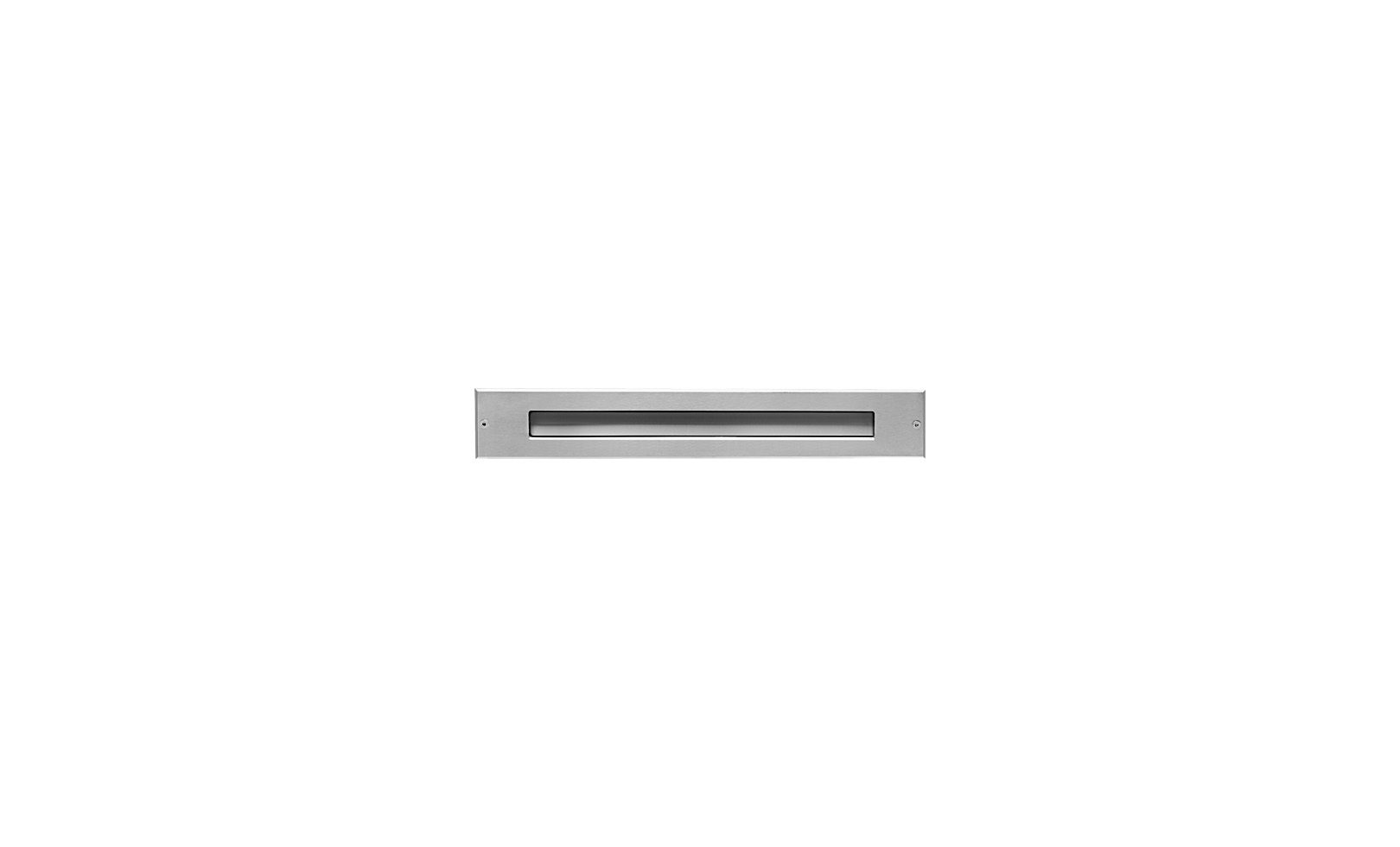

Linear wall-recessed luminaire for outdoor installation, length 500mm, Phospho-chromatised and polyester powder coated extruded copper-free aluminium body and stainless steel AISI 304 frame, tempered frosted glass diffuser, moulded silicone gaskets, stainless steel recessing sleeve. Asymmetrical light distribution. Built-in LED driver 220-240V 50-60Hz, with 28 CREE XH-G mid-power LED. IP67 rating.
17 WATT
· Material: high corrosion resistance extruded copper-free aluminum body
· Coating: polyester powder coating with phosphocromating pre-finish
· NR. 28 CREE XH-G mid-power LED
· Electronic transformer 220/240V 50/60Hz included
· Stainless steel trim AISI 304
· Stainless steel screws
· Silicone rubber gasket
· Tempered frosted glass diffuser.
· Stainless steel recessing sleeve.
· Protection against impact IK09 (10 joule)
· Double M20 cable gland
· 1 mt. neoprene power cable included

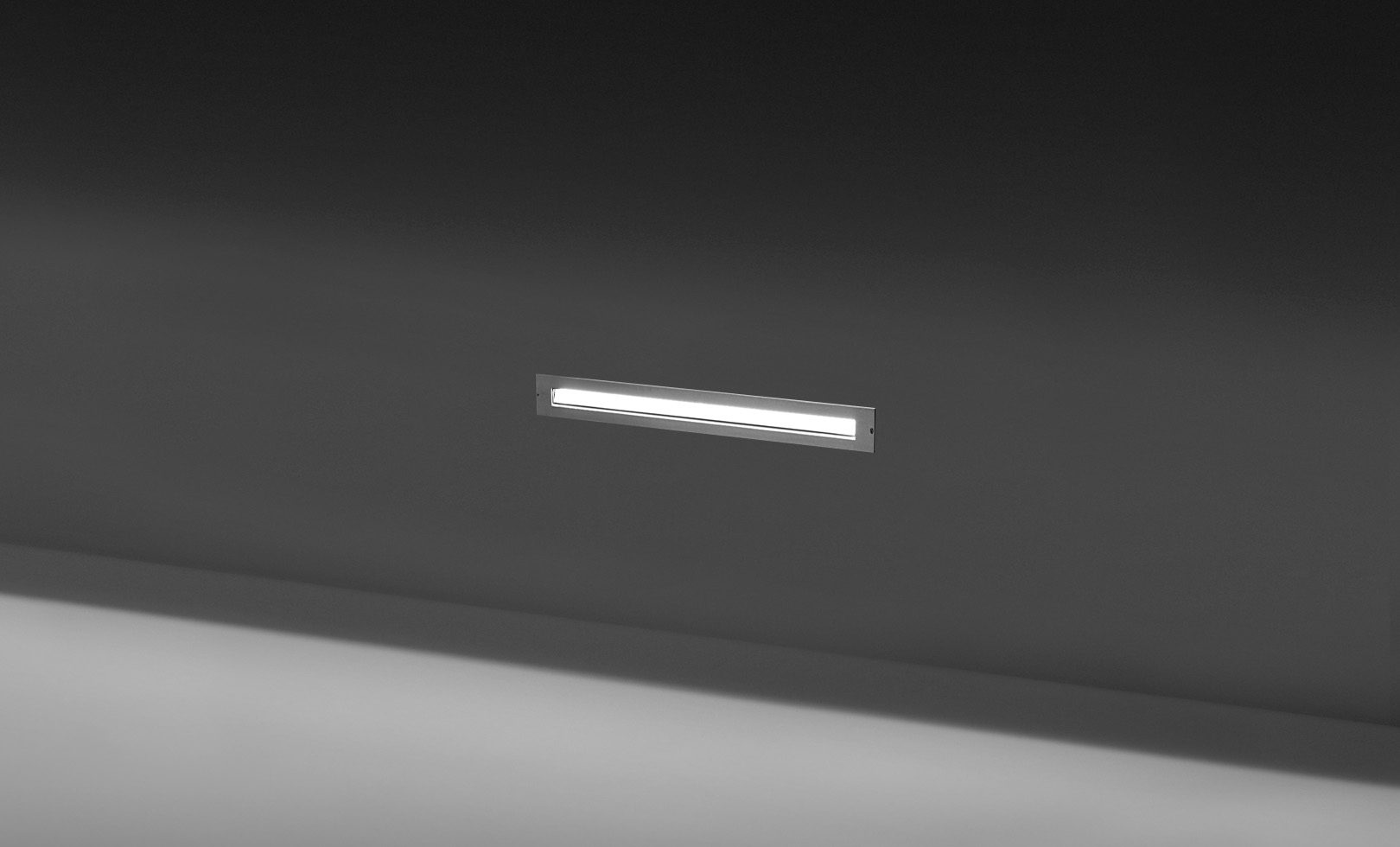

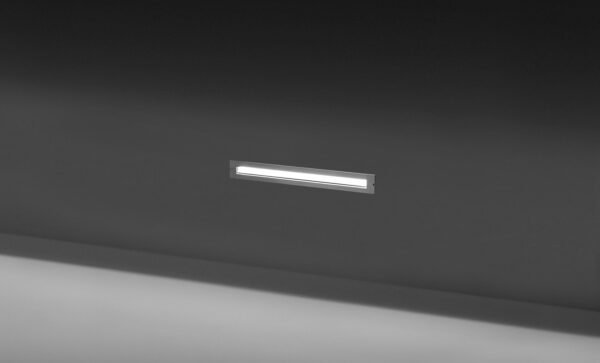

Where to useFor stairs, ramps, terraces and building entrances.
- Power
- 17W
- IP rating
- IP67
- Impact rating
- IK09
Downloads
Technical datasheet503001 · PDF
Specifications
At a glance
| Product code | 503001 |
|---|---|
| Brand | PUK Italy |
| Category | PUK Italy Wall Recessed |
| Power | 17W |
| IP rating | IP67 |
| Impact rating | IK09 |
